Pilot Operated Diaphragm Type Solenoid Valve (NC)

Pilot Operated Diaphragm Type Solenoid Valve (NC)

Name: Pilot Operated Diaphragm Type Solenoid Valve (NC)
Brand: UFLOW AUTOMATION
Price: 7000 INR
Availability: InStock

7000 INR/Piece

Get a Price/Quote

Product Details:

Material Brass
Valve Structure Diaphragm Valve
Size 3/8" TO 2"
Way Type Two-Way
Product Type SOLENOID VALVE
Processing Type Standard
Pressure Medium Pressure
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pilot Operated Diaphragm Type Solenoid Valve (NC) Price And Quantity

Minimum Order Quantity 200 Piece
Price 7000 INR/Piece
Price Range 7000.00 - 8000.00 INR/Piece

Pilot Operated Diaphragm Type Solenoid Valve (NC) Product Specifications

Size 3/8" TO 2"
Port Size 3/8" TO 2"
Media Water
Valve Structure Diaphragm Valve
Temperature of Media Medium.
Product Type SOLENOID VALVE
Pressure Medium Pressure
Application WATER
Weight 0.80000 Kilograms (kg)
Working Temperature -10 TO 180 Celsius (oC)
Processing Type Standard
Material Brass
Way Type Two-Way
Color golden
Connection Type Thread

Pilot Operated Diaphragm Type Solenoid Valve (NC) Trade Information

FOB Port RAJKOT
Supply Ability 1500 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Australia, North America, South America, Asia, Central America, Eastern Europe, Africa, Middle East, Western Europe
Main Domestic Market All India

Product Description

Pilot Operated Diaphragm Type Solenoid Valve (NC)valve:

Port:	Refer below technical data sheet (Available BSP / NPT)
End Connection:	Screwed / Flange
Body Material:	SS ASTM A351 Grade CF8 / CF8M, Forged Brass
Diaphragm & Media Temp:	Nitrile (NBR)	EPDM	Viton (FKM)	PTFE
ï	. -30 C to 90 C	-10 C to 140C	-10 C to 180 C	-10C to 180 C
Circumstance Temp:	-10 C to 70 C
Media:	Air, Water, Chemical, Gas, Oil, Steam, LPG.
Main Features:	Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment.
Optional Feature:	90% Power saver series also available, Water hammering reducer also available to avoid water hammer forces. Special high flow rate series available on request at low pressure or gravity pressure application.
Other Specification Data:	Available on Request.

Coil Features

Coil Features:	High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Coil Housing:	Epoxy square coil, Metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure
Note:	Use of filter in the inlet port is recommended.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Solenoid Valves' category

Water Solenoid Valve Price : 6000 INR/Piece Minimum Order Quantity : 100 Application : all application Way Type : TwoWay Material : Stainless Steel Processing Type : Standard Color : sliver Valve Structure : Diaphragm Valve Media : Water Product Type : SOLENOID VALVE Connection Type : Socket Size : 1/2 to 4 Port Size : 1/2 to 4 Pressure : Medium Pressure Weight : 1 Kilograms (kg) Temperature of Media : Medium.

Send Inquiry

1/2 Way Direct Acting NC Valve Price : 3000 INR/Piece Minimum Order Quantity : 200 Application : all application Way Type : TwoWay Material : Stainless Steel Processing Type : Standard Color : SLIVER BLACK Valve Structure : Diaphragm Valve Media : Water Product Type : 2 WAY DIRECT ACING VALVE Connection Type : Socket Size : 1/2 Port Size : 1/2 Pressure : Medium Pressure Weight : 0.500 Kilograms (kg) Temperature of Media : Medium.

Send Inquiry

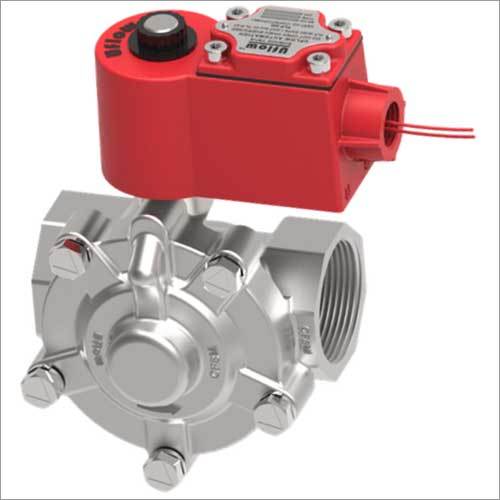

Fuel Solenoid Valve Price : 6000.00 INR/Piece Minimum Order Quantity : 100 Application : Fuel Way Type : TwoWay Material : Stainless Steel Processing Type : Standard Color : Silver Valve Structure : Diaphragm Valve Media : Other Product Type : Fuel Solenoid valve Connection Type : Thread Size : 3/8" To 6" Port Size : 3/8" To 6" Pressure : High Pressure Working Temperature : 10 180 Celsius (oC)
