2 Way Direct Acting Solenoid Valve

Name: 2 Way Direct Acting Solenoid Valve
Brand: UFLOW AUTOMATION
Price: 1000 INR
Availability: InStock

1000 INR/Piece

Get a Price/Quote

Product Details:

Material Brass
Size 1/2
Valve Structure Diaphragm Valve
Way Type Two-Way
Product Type Direct Acting Solenoid Valve
Processing Type Standard
Pressure Medium Pressure
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

2 Way Direct Acting Solenoid Valve Price And Quantity

Price 1000 INR/Piece
Price Range 1000.00 - 1700.00 INR/Piece
Minimum Order Quantity 200 Piece

2 Way Direct Acting Solenoid Valve Product Specifications

Pressure Medium Pressure
Product Type Direct Acting Solenoid Valve
Connection Type Other
Media Water
Application all application
Weight 0.500 Kilograms (kg)
Port Size 1/2
Processing Type Standard
Material Brass
Way Type Two-Way
Temperature of Media Medium.
Color golden black
Valve Structure Diaphragm Valve
Size 1/2

2 Way Direct Acting Solenoid Valve Trade Information

FOB Port RAJKOT
Supply Ability 1000 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) North America, South America, Africa, Asia, Australia, Central America, Eastern Europe, Western Europe, Middle East
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Port :
End Connection :
Body Material :
Seal & 'O' Ring :
Circumstance Temp :
Media Temp:
Media :
Main Features :

Operating Voltage :
Power Consumption :
Features :

Coil Housing :

Optional Feature :
Other Specification Data :

Refer below technical data sheet (Available BSP / NPT)
Screwed.
SS ASTM A351 Grade CF8 / CF8M, Aluminium,Forged Brass.
Nitrite (NBR),VITON (FKM),EPDM,Silicon.
-10 C to 90 C
-10 C to 90 C, -10 C to 140 C, -10 C to 180 C.
Air, Water, Chemical, Gases, Oil, Diesel, Kerosene, LPG.
Internal Parts are superior corrosion resistance steel (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical applications & Highly corrosive environment.
AC : 24V, 48V, 110V, 230V, 240V, 50HZ/60HZ DC : 12V, 24V
AC : 5.5W, 7.5W, 8.5W, 9.5W, 10W, 11.5W, 12W DC : 10W, 11W
High Reliability Unaffected by Voltage Surges.
Easy coil changes Coil lockable in 4Î90, Position or freely movable in between as require.
Epoxy Square Coil, Metallic Round Enclosure, IP-67 Flame Proof Enclosure, IP-68 Weather Proof Enclosure.
90% Power saver series also available. Manual Override.
Available on request.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Solenoid Valves' category

1/4" 4/2 Internal Pilot Operated Double Solenoid Poppet Valve Price : 2000 INR/Piece Minimum Order Quantity : 5000 Temperature of Media : Medium. Way Type : Other Material : Other Size : 1/4 Valve Structure : Customized Color : Silver Media : Other Product Type : Direction Control Valve (Solenoid) Pressure : Low Pressure Processing Type : Standard Weight : 1 Kilograms (kg) Application : Compressed Air, Oxygen, Gas Port Size : 1/4" Connection Type : Thread Working Temperature : 5C 60C Celsius (oC)

Send Inquiry

3/8 Semi Lift Diaphragm Operated Solenoid Valve Price : 3000 INR/Piece Minimum Order Quantity : 200 Temperature of Media : Medium. Way Type : TwoWay Material : Stainless Steel Size : 3/8 Valve Structure : Diaphragm Valve Color : SLIVER Media : Water Product Type : SOLENOID VALVE Pressure : Medium Pressure Processing Type : Standard Weight : 0.800 Kilograms (kg) Application : all application Port Size : 3/8 Connection Type : Socket Working Temperature : 10 C to 70 C Celsius (oC)

Send Inquiry

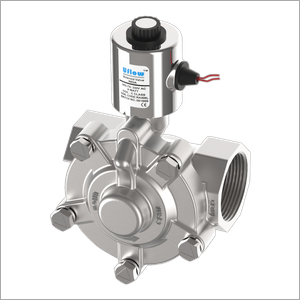

Industrial Pilot Operated Diaphragm Type Solenoid Valve Price : 5000 - 50000 INR/Piece Minimum Order Quantity : 1000 Temperature of Media : Medium. Way Type : Single Material : Stainless Steel Size : 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4" Valve Structure : Diaphragm Valve Color : Silver Media : Water Product Type : Pilot Operated Diaphragm Valve (NC / NO) Pressure : Medium Pressure Processing Type : Standard Weight : 1.5 Kilograms (kg) Application : All Application Port Size : 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4" Working Temperature : 10 to 70 Celsius (oC)
