Pneumatically Controlled Y Type Valve With SS Actuator (Angle Seated)

Pneumatically Controlled Y Type Valve With SS Actuator (Angle Seated)

Name: Pneumatically Controlled Y Type Valve With SS Actuator (Angle Seated)
Brand: UFLOW AUTOMATION
Price: 3200 INR
Availability: InStock

3200 INR/Piece

Get a Price/Quote

Product Details:

Application ALL APPLICATION
Structure Angle
Sealing PTFE
Type PNEUMATIC
Power Pneumatic
Size 1/2" TO 2 "
Pressure Medium Pressure
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pneumatically Controlled Y Type Valve With SS Actuator (Angle Seated) Price And Quantity

Price Range 3200.00 - 4000.00 INR/Piece
Minimum Order Quantity 100 Piece
Price 3200 INR/Piece

Pneumatically Controlled Y Type Valve With SS Actuator (Angle Seated) Product Specifications

Pressure Medium Pressure
Power Pneumatic
Size 1/2" TO 2 "
Color SILVER
Application ALL APPLICATION
Structure Angle
Type PNEUMATIC
Temperature -10C to 70C Celsius (oC)
Product Type Angle Seat Valve with Steel Operator (NC/NO)
Weight 2 Kilograms (kg)
Sealing PTFE
Media Water
Port Size 1/2" TO 2 "

Pneumatically Controlled Y Type Valve With SS Actuator (Angle Seated) Trade Information

FOB Port RAJKOT
Payment Terms Telegraphic Transfer (T/T), Cheque, Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID)
Supply Ability 1000 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Asia, Central America, Eastern Europe, Western Europe, South America, Middle East, Africa, Australia, North America
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Our organization has achieved a remarkable position in presenting a huge stock of Angle Seat Valve With Steel Operator (NC-NO). It is manufactured with a premium resource of material to increase its working life. This operator is equipped with advance machinery under the guidance of dexterous professionals. It is easy to handle aggressive fluids like hot water, light slurries and others. It can directly manage NC or NO angle seat valves.

Angle Seat Valve with Steel Operator (NC/NO) Specifications

valve:

Port:	Refer below technical data sheet (Available BSP / NPT)
End Connection:	Screwed / Flange / Tri-Clamp
Body Material:	SS ASTM A351 Grade CF8 / CF8M
Seal:	TEFLON / VITON / EPDM / SILICON
Circumstance Temp:	-10 C to 70 C
Media Temp:	-10 C to 180 C
Media:	Steam, Air, Water, Chemical, Gases, Oil, Diesel, Hot Water

Coil:

Cover:	SS304
Plate:	Aluminum Die-Cast
Working Pressure:	3.5 to 7 bar air (Not recommended actuator pressure above 7 bar)
Life:	More than ten million cycle
Other Technical Data:	Available on Request

Technical Data

Model No.	Body Material	Pipe (Inch)	Orifice (mm)	Min. Operating Pressure Kg/cm	Max. Operating Pressure Kg/cm	Seal & O Ring Material	Flow Factor Kv m / hr
YCP25	CF8 / CF8M	1/2 Inch	15	0	16	PTFE / VITON /EPDM	6
YCP35	CF8 / CF8M	3/4 Inch	20	0	16	PTFE / VITON /EPDM	10.90
YCP45	CF8 / CF8M	1 Inch	25	0	16	PTFE / VITON /EPDM	21
YCP55	CF8 / CF8M	1-1/4 Inch	40	0	16	PTFE / VITON /EPDM	35
YCP65	CF8 / CF8M	1-1/2 Inch	40	0	16	PTFE / VITON /EPDM	49
YCP83	CF8 / CF8M	2 Inch	50	0	07	PTFE / VITON /EPDM	68

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Angle Seat Valves' category

2 BSP Y Type Control Valve Price : 4500 INR/Piece Minimum Order Quantity : 100 Weight : 4 Kilograms (kg) Product Type : angle seat valve Structure : Angle Sealing : PTFE Media : Gas Port Size : 2 BSP Power : Pneumatic Application : air Color : SLIVER BLACK Temperature : 10C to 70C Celsius (oC) Pressure : Medium Pressure Size : 2 BSP Type : PNEUMATIC

Send Inquiry

1/2 Pneumatically Y Type Control Valve Price : 2000 INR/Piece Minimum Order Quantity : 100 Weight : 1 Kilograms (kg) Product Type : angle seat valve Structure : Angle Sealing : PTFE Media : Gas Port Size : 1/2 Power : Pneumatic Application : AIR Color : SILVER BLACK Temperature : 180 Degree C Celsius (oC) Pressure : Medium Pressure Size : 1/2 Type : PNEUMATIC

Send Inquiry

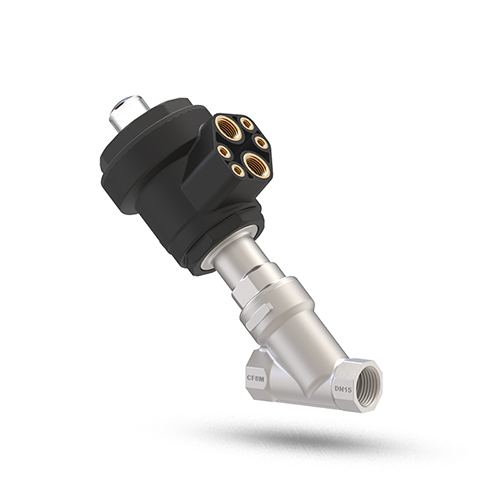

2 Bi-Directional Angle Seat Valve Price : 8000 INR/Piece Minimum Order Quantity : 100 Weight : 2 Kilograms (kg) Product Type : angle seat valve Structure : Angle Sealing : PTFE Media : Oil, Water Port Size : 2 Power : Pneumatic Application : water Color : sliver black Pressure : Medium Pressure Size : 2 Type : PNEUMATIC

Send Inquiry

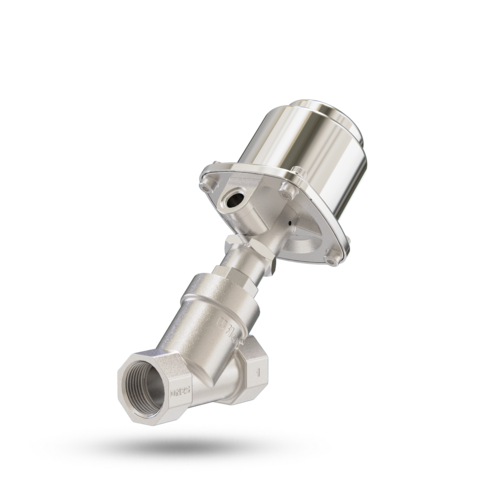

2 YCP Angle Seat Steel Operator Valve Price : 8000 INR/Piece Minimum Order Quantity : 100 Weight : 4 Kilograms (kg) Product Type : angle seat valve Structure : Angle Sealing : PTFE Media : Water Port Size : 2 Power : Pneumatic Application : ALL APPLICATION Color : SILVER Temperature : 10AC to 70AC Celsius (oC) Pressure : Medium Pressure Size : 2
