3 Piece Design Ball Valve (ISO Pad)

Name: 3 Piece Design Ball Valve (ISO Pad)
Brand: UFLOW AUTOMATION
Price: 1500 INR
Availability: InStock

1500 INR/Piece

Get a Price/Quote

Product Details:

Structure Ball
Connection FLANGE END , SCREWED END SOCKET WELD
Pressure Other
Material Stainless Steel
Size 1/2" TO 4"
Media Water
Temperature of Media 180 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

3 Piece Design Ball Valve (ISO Pad) Price And Quantity

Minimum Order Quantity 100 Piece
Price 1500 INR/Piece
Price Range 1500.00 - 2000.00 INR/Piece

3 Piece Design Ball Valve (ISO Pad) Product Specifications

Pressure Other
Connection FLANGE END , SCREWED END SOCKET WELD
Application WATER
Structure Ball
Size 1/2" TO 4"
Weight 1.00 Kilograms (kg)
Material Stainless Steel
Media Water
Temperature of Media 180 Celsius (oC)
Product Type 3 PIECE BALL VALVE (ISO PAD )
Color SILVER & BLACK
Port Size 1/2" TO 4"

3 Piece Design Ball Valve (ISO Pad) Trade Information

FOB Port RAJKOT
Payment Terms Cash Advance (CA), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cheque, Cash in Advance (CID), Letter of Credit at Sight (Sight L/C)
Supply Ability 100 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Asia, Australia, North America, Western Europe, Africa, South America, Eastern Europe, Central America, Middle East
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Screwed / Socket Weld Ball Valve Specifications:

valve:

End Connection:	Screwed end, Socket Weld
Face to Face:	MFG. Standard
Pressure Class:	150#
Design Standard:	ASME B16.11, ASME B16.34, API 598, BS EN ISO 17292, ISO 5211
Body Material:	CF8 / CF8M / WCB / CF3M
Ball Material:	CF8 / CF8M
Body Seal Material:	PTFE / RPTFE / CFT / GFT / PEEK
Seat Ring Material:	PTFE / RPTFE / CFT / GFT / PEEK
Fastner Material:	SS304 / SS316
Stem Seal Material:	PTFE / RPTFE / CFT / GFT / PEEK
Stem Material:	SS304 / SS316 / SS410
Gland Bush Material:	SS304 / SS316 / SS410
Gland Material:	SS304 / SS316 / SS410
Size:	DN15 - DN80
Pipe End Material:	CF8 / CF8M / WCB / CF3M

Features

3PC design twin seal ball valve.
Full port ball valve.
Blow out proof stem.
Floating ball design.
Hand lever / Gear / Actuator operated.
Face to Face:- MFG Standard.
Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque.
End Connection:- Screwed / Socket weld (ASME B16.11).
ISO 5211 top mounting pad available for easy Uflow make actuator mounting.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ball Valve' category

3 Piece Screw End and Socket Weld Handle Type Ball Valve Price : 3500 - 25000 INR/Piece Minimum Order Quantity : 1000 Media : Water Port Size : 1/2", 3/4", 1", 11/2", 2", 21/2",3", 4", Product Type : Handel Type Ball Valve Color : Silver, Black Application : All Application Connection : Screw End and Socket Weld Material : Stainless Steel Weight : 1 Kilograms (kg) Size : 1/2", 3/4", 1", 11/2", 2", 21/2",3", 4", Pressure : Medium Pressure Flange : Screw End and Socket Weld Temperature of Media : Up To 150 C Celsius (oC) Structure : Ball

Send Inquiry

3 Piece Flange End Handle Type Ball Valve Price : 4000 - 30000 INR/Piece Minimum Order Quantity : 1000 Media : Water Port Size : 1/2", 3/4", 1", 11/2", 2", 21/2", 3", 4" Product Type : 3 Piece Flange End Handel Type Ball Valve Color : Silver Black Application : All Application Connection : Flange End Material : Stainless Steel Weight : 1 Kilograms (kg) Size : 1/2", 3/4", 1", 11/2", 2", 21/2", 3", 4" Pressure : Medium Pressure Flange : Flange End Temperature of Media : Up to 150 C Celsius (oC) Structure : Ball

Send Inquiry

3 Piece Screw End and Socket Weld Pneumatic Operated Ball Valve Price : 3500 - 35000 INR/Piece Minimum Order Quantity : 1000 Media : Water Port Size : 1/2", 3/4", 1", 11/2", 2", 21/2", 3", 4" Product Type : Screwed / Socket Weld Ball Valve Color : Silver, Black Application : All Application Connection : Screwed / Socket Weld Material : Stainless Steel Weight : 1 Kilograms (kg) Size : 1/2", 3/4", 1", 11/2", 2", 21/2", 3", 4" Pressure : Medium Pressure Flange : Screwed / Socket Weld Temperature of Media : Up to 180C Celsius (oC)

Send Inquiry

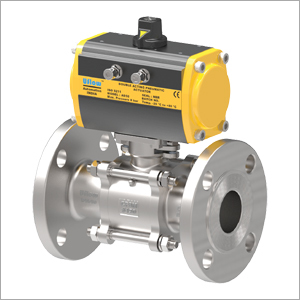

3 Piece Flange End Pneumatic Operated Ball Valve Price : 4500 - 40000 INR/Piece Minimum Order Quantity : 1000 Media : Water Port Size : 1/2", 3/4", 1", 11/2", 2", 21/2", 3", 4" Product Type : 3 PIECE BALL VALVE (PNEUMATIC ACTUATOR) Color : Silver, Black Application : All Application Connection : Flange End Material : Stainless Steel Weight : 2 Kilograms (kg) Size : 1/2", 3/4", 1", 11/2", 2", 21/2", 3", 4" Pressure : Medium Pressure Flange : Flange End
